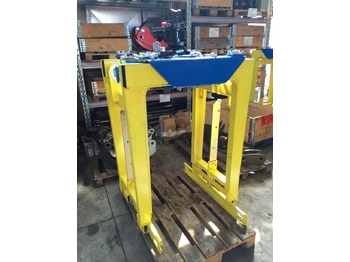

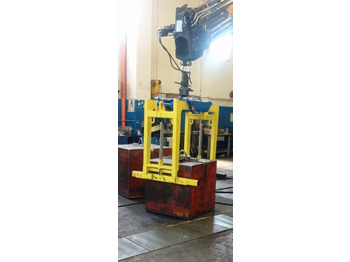

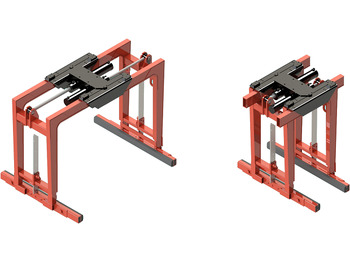

Klammergeräte neu kaufen für Ladekrane Brick stack grapple PL-3

Brick stack grapple for hydraulic crane for truck. The block carriers have been manufactured  to be used for  transportation of palletised and unpalletised packs of blocks.The brick stack grapples are designed to lift stacked material, be it packed on a pallet or loose, in a fast and simple fashion.The grapple arms have adjustable height and this allows the grab to adapt to different types and sizes of cargo.The rubber bands offer high adhesion to the cargo and can be replaced quickly in case they getworn out, thanks to a quick unlock system of the compression rails.The rubber bands are manufactured in EPDM material to be able to work in different climate conditions.

-Reference:PL-3

-Type:New

-Max loading capacity (kg):3000

-Aperture of the grab (mm): 1400

-Max height reached by the grab(mm):1380 (2500kg)

-Maximum pressure(bar): 200

-Material: Steel

-Dimensions (mm): 1501 X1300 X 1400

-Weight: 501 kg

-Available options:

Recommended rotator  for this grab RB-R7CFS

For orders with more than 1 unit,please contact with our commercial department before the purchase to check the transport cost and availability of the product. We always have 1 unit on stock.
