Tankwagen für die Beförderung von kraftstoff - vermietung möglich MAN 33-343

Capacity: 65.000 ltr

65 ton aircraf fuel tanker

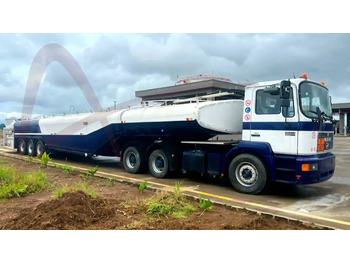

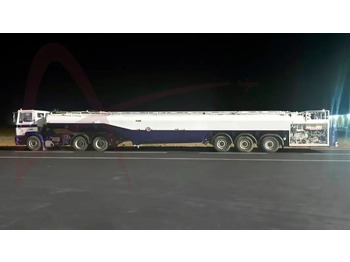

Low-profile Acoman/MAN 33-343 refueller of 65m3

Description :

Tractor unit :

Brand : MAN

Emission : Euro 2

Cab : day cab with 2 seats

Type : 33-343 DFT Silent

Drive line : 6×4

Transmission : automatic gearbox

Total weight : 33 tons

Engine power : 343 HP

Suspension : mechanical, leaf

Fuel : Diesel

Year of construction : 1999

Mileage : 38807 km

Engine hours : 13804 h

Reverse camera system : Brigade

Driving/ PTO : pump, hydraulic tank with cooler unit

Full historic of the maintenance available

Refueller :

Brand : Acomal (Belgium)

Year of construction : 1984

Dimensions : L 21m x W 3,10m x H 2,75m

Axles : 3 x SAF 12 ton with pneumatic suspension

Capacity : 65000L

Material : aluminium

Fuels : Jet A1

Thickness : 8 mm

Side protection : aluminium profile over full length of the tank

# Compartments : 1

Bottom loading 4’’ with vapour recovery and Scully system(overfill protection system).

Bottom loading at RHS/ LHS

Bayham level indicator

Metering unit : 2 x electronic Veeder Root EMR3 metering units with printer in cab.

Platform : large hydraulic scissors platform in aluminium with access from the rear ladder.

Height of the platform : 4,20 m (for access to 777).

Telescopic ladder in aluminium for access to the platform.

2 deck hoses with Carter underwing nozzles (capacity 3200l/min). Both hoses have been replaced in 2016.

Hosereel : mounted at the rear of the refueller with 20 m 2” hose with Carter underwing nozzle. Hydraulic driven.

Deadman with cable

Pump : Dickow pump HZS 1523 (renewed in 2014) – hydraulically driven

Faudi Filter Monitor system, 7th Edition, with Faudi elements(elements need to be replaced in 01/2020)

Others : automatic greasing system (Groeneveld)

Walkway on top of the tank over the full length

Collapsable reeling over the full length of the walkway

Fire extinguishers, 2 x at the rear of the refueller

Interlock system
